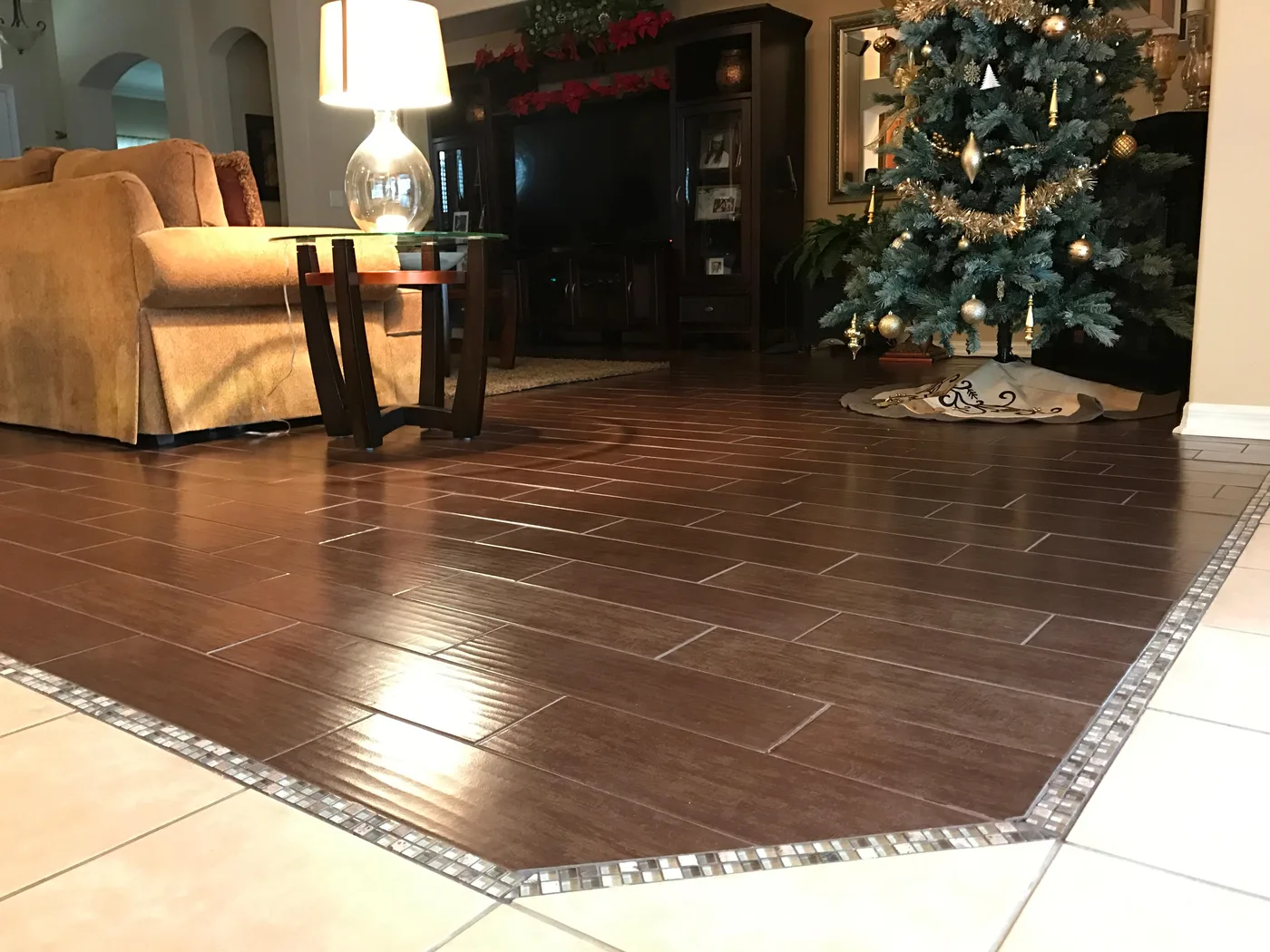

Precision 12×24 porcelain tile installation in an Orlando, FL home — flat subfloor, lippage-free finish, and the clean modern aesthetic that makes rooms feel noticeably larger.
ResidentialLarge-Format Tile12×24Orlando, FL
Project Overview
The 12×24 format has become one of the most popular tile sizes in contemporary Florida home design — and for good reason. The elongated rectangle creates fewer grout lines than smaller square formats, making floors easier to maintain and creating a cleaner visual aesthetic. The large format also makes rooms feel noticeably larger and more open, a significant benefit in Florida homes where open floor plans and indoor-outdoor connection are design priorities.
But 12×24 tile is also one of the more technically demanding formats to install correctly. The long dimension of the tile amplifies any subfloor unevenness — a deviation that would be barely noticeable under a 4×4 tile creates visible lippage under a 12×24. This project involved full subfloor preparation, precise layout planning, and a careful installation process to deliver the lippage-free, level result that large-format tile requires.
Layout Planning for 12×24
Layout planning for 12×24 tile is more complex than for square tiles because the rectangular format can be oriented in multiple directions — running parallel to the room's long axis, perpendicular to it, or even at a 45-degree diagonal. Each orientation creates a different visual effect, and the choice affects how cuts land at the perimeter.
For this project, tiles were oriented with the long axis running perpendicular to the main entry — a layout that emphasizes the room's width and creates a visual expansion effect from the entry point. The layout was centered on the room's primary sightline, with cuts balanced symmetrically at the side walls and planned to avoid cuts smaller than half a tile width — the standard that prevents the layout from looking visually awkward.
Subfloor Preparation for Large-Format Tile
The TCNA installation standard for large-format tile (tiles with any dimension greater than 15 inches) requires subfloor flatness of 1/8 inch over 10 feet — stricter than the 3/16 inch standard for smaller tiles. The concrete subfloor was checked with a 10-foot aluminum straightedge and all deviations above tolerance were addressed with grinding (high spots) and self-leveling compound (low areas) before any tile was set.
This extra preparation investment is the difference between a large-format tile floor that looks premium and one that develops lippage — the raised tile edges that catch feet, look poor, and indicate that the installation was rushed or improperly planned. There is no shortcut that produces a good large-format tile floor on an unprepared substrate.
Installation with Tile Leveling System
Large-format tile installation used a tile leveling clip system — plastic clips and wedges that hold adjacent tiles at identical height while the thinset cures, preventing any relative height difference between tiles during the set period. This system is standard practice for any tile larger than 12 inches in either dimension and produces the lippage-free result that large-format tile requires.
Thinset application used a large notch trowel appropriate for the tile size, and back-buttering — applying additional thinset to the back of each tile — ensured full coverage with no voids under any tile. 95% minimum thinset coverage is required by TCNA standards for large-format tile; we target 100% coverage on every tile.
Results: A Floor That Makes the Room
The completed 12×24 tile floor delivered exactly the visual effect the homeowner wanted — a clean, contemporary surface with minimal grout lines that makes the space feel expansive and modern. The level, lippage-free surface is comfortable underfoot and easy to maintain, with fewer grout joints to clean than any smaller tile format would have provided.
Subfloor prepared to 1/8 inch flatness tolerance for large-format tile
Layout centered with balanced perimeter cuts
Tile leveling clip system — 100% lippage prevention
12x24 tile has fewer grout lines than smaller tiles, creating a cleaner visual and easier maintenance. The larger format makes spaces feel bigger and more open — particularly effective in smaller rooms like bathrooms where 4x4 or 6x6 tile can feel busy. The elongated format also has a modern aesthetic that pairs well with contemporary interiors. The trade-off is that installation requires a stricter subfloor flatness standard and more precision in layout planning.
Tile lippage refers to the height difference between adjacent tile edges — where one tile sits higher than its neighbor, creating a raised edge that is a trip hazard and looks poor. Lippage is caused by subfloor unevenness, inconsistent thinset bed thickness, or tile warping. Prevention requires a flat substrate within the required tolerance (stricter for larger tiles), back-buttering large tiles to ensure consistent thinset coverage, and using tile leveling clips during installation to hold adjacent tiles at identical height while the thinset cures.
The TCNA (Tile Council of North America) standard for large-format tile requires maximum 1/8 inch variation in 10 feet — stricter than the standard 3/16 inch allowed for smaller tiles. This is because the longer dimension of large-format tiles bridges further across any low or high spot, amplifying the lippage effect. We verify and achieve this tolerance with concrete grinding or leveling compound before any large-format tile installation.
Yes — 12x24 is an excellent choice for bathroom floors in Florida homes. The fewer grout lines make the floor easier to keep clean, and the large format creates a more expansive, spa-like visual in smaller spaces. For wet areas, the tile must have a slip resistance rating appropriate for wet conditions (DCOF ≥ 0.42 for level floors). We verify slip-resistance compliance on all bathroom floor tile selections.
Yes. We install 12x24, 18x36, 24x24, and 24x48 large-format tile in homes and commercial spaces throughout Orlando and Central Florida. Large-format tile installation is a core part of our tile service. Contact us for a free estimate.
